Motorola SURFboard Ethernet Cable Modem WiFi Router SB6121 High Speed DOCSIS 3.0

Motorola SURFboard Ethernet Cable Modem WiFi Router SB6121 High Speed DOCSIS 3.0

Brand: Motorola

Model: SB6121

Compatibility:

-PC: 90496, Pentium, or later; Windows Vista, 2000, XP or 7 or Linux with Ethernet connection (although not specifically supported, older versions of Windows will work with this cable modem)

-Mac: Power PC or later; OS 9 or higher, Ethernet connection

-UNIX: Ethernet connection

-Home Networking: Ethernet router or wireless access point

Item includes: Motorola SURFboard SB6121 Cable Modem - Device Only. Missing charger, Ethernet cable and guide

Quality: Original

Condition: The item is in excellent cosmetic condition, with a rating of 9 out of 10, or possibly even 10 out of 10. It has been categorized as Grade A due to the fact that it is not in its original retail packaging and may exhibit minor details, which can be attributed to its storage in bulk. However, it is important to note that the item is fully functional and in perfect working order.

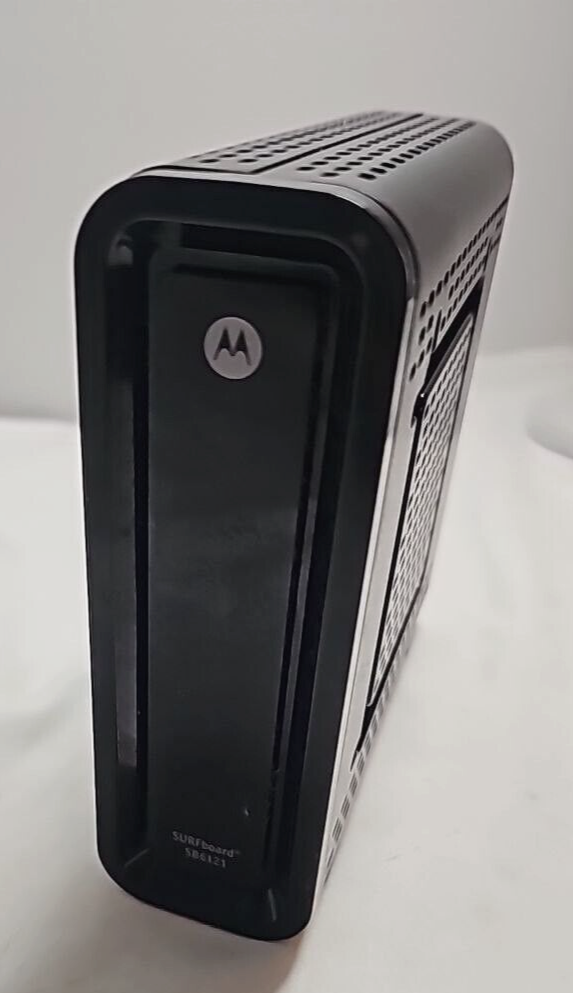

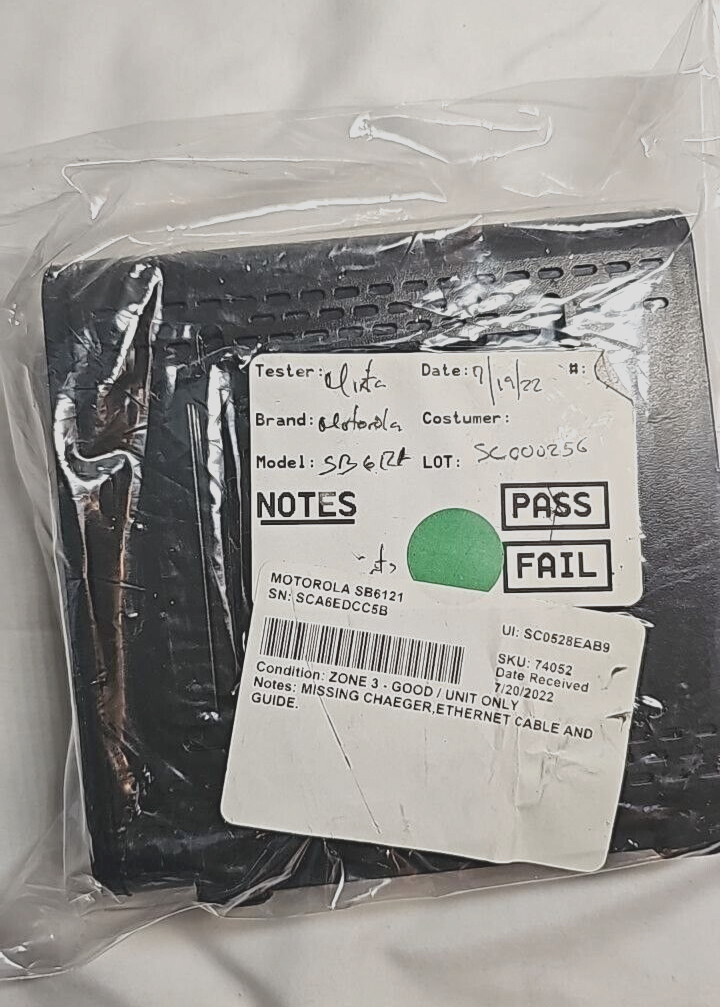

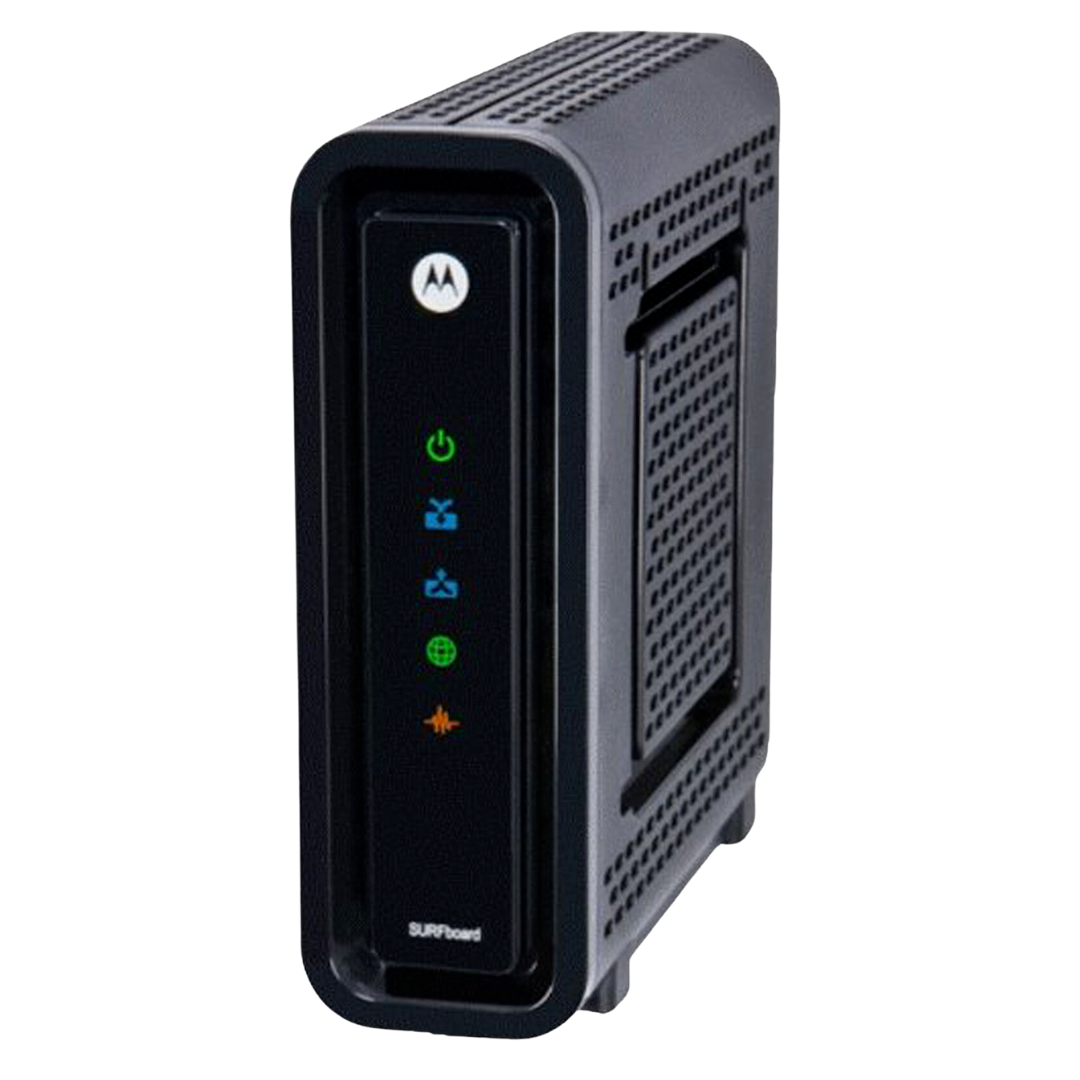

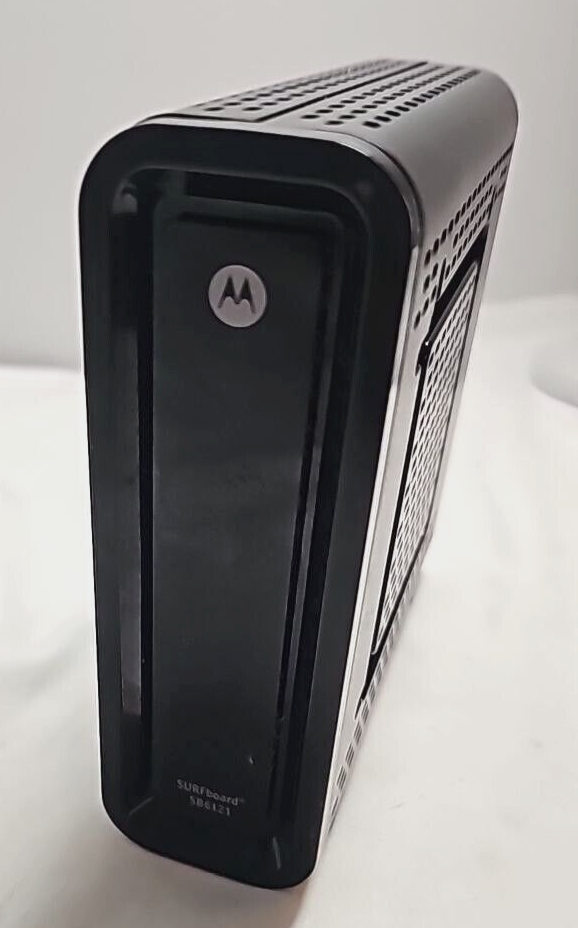

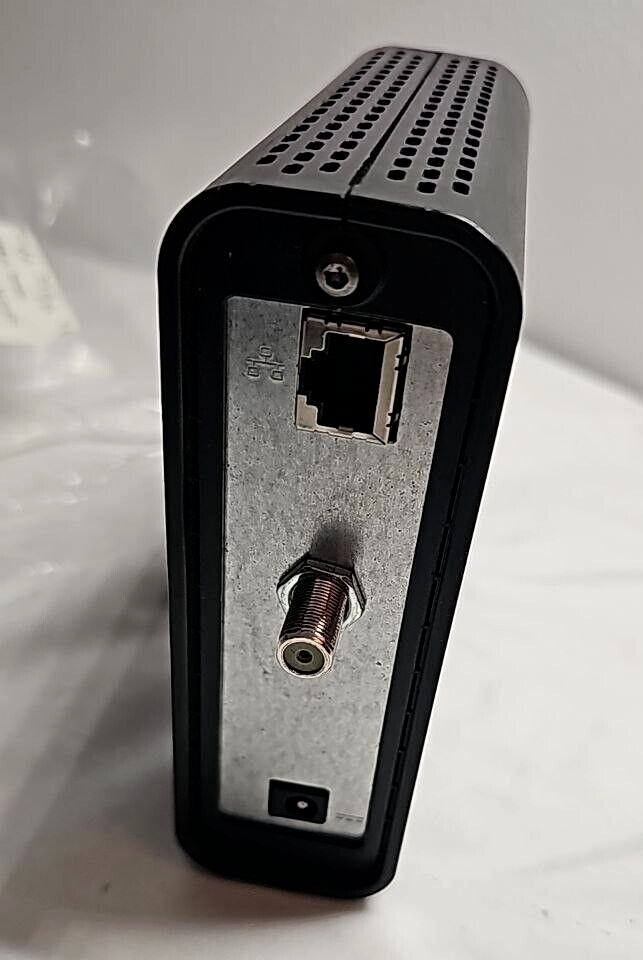

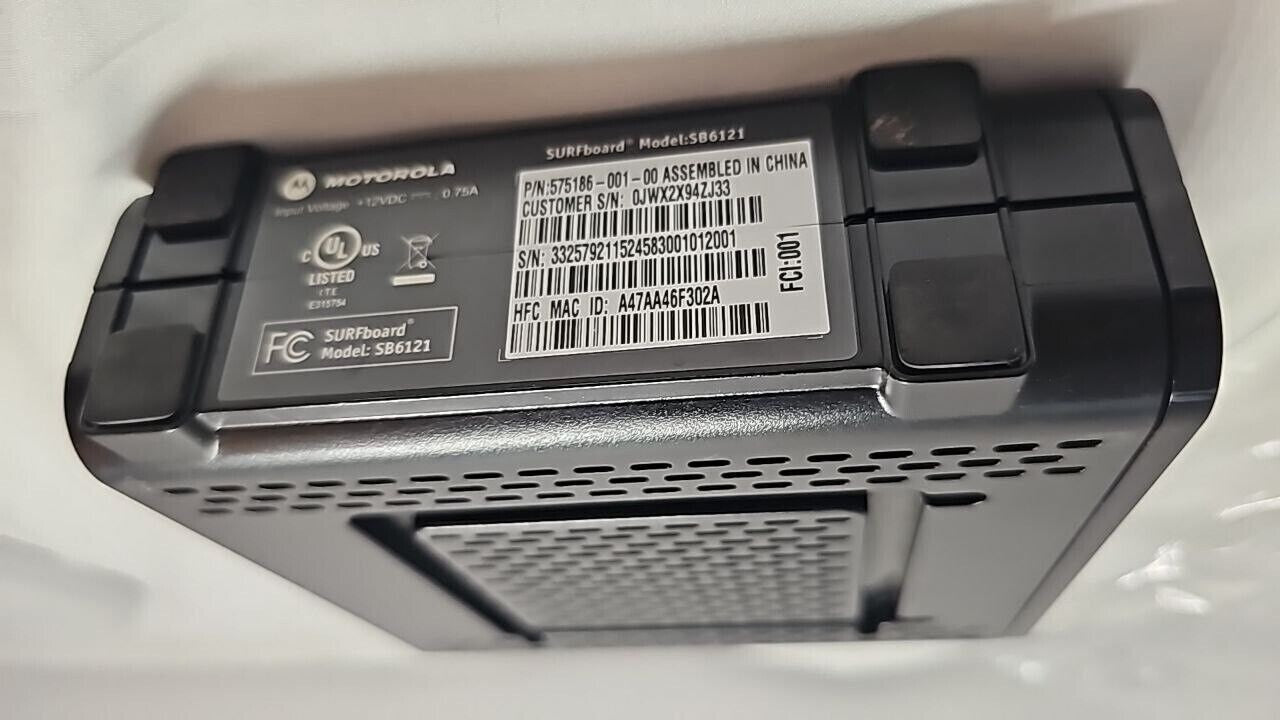

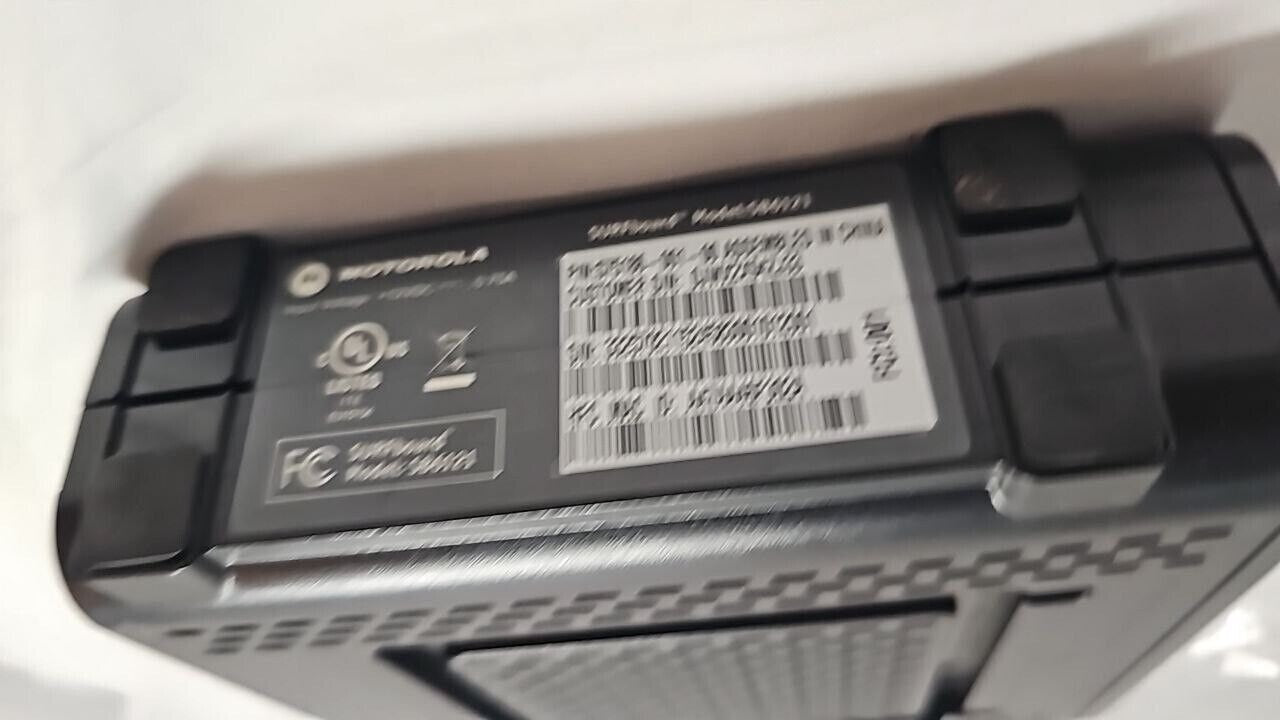

Notes: Please note that the first picture of the item is for illustrative purposes only. For an accurate representation of the product's appearance, please refer to the pictures starting from the second image onwards. These subsequent pictures provide a true depiction of how the product actually looks. The box may be damaged due to bulk storage.

Features:

✓Economic and Flexible: The modem provides operators with an economic option for providing Ultra-Broadband services, with four times the current maximum user data throughput, approximating 160 Mbps in DOCSIS mode and 195 Mbps in EuroDOCSIS mode, without the need for hybrid fiber coax (HFC) plant upgrade.

✓Enhanced Network Management: With the ability to provision and manage IP multicast, GigE (RJ-45) data port with Auto Negotiate and Auto MDIX, and user-friendly online diagnostics--the SB6121 has got the features to give you full-control over network management and maintenance.

✓Backward Compatibility: Backward compatible to DOCSIS 1.0, 1.1 and 2.0, the SB6121 also supports both IPv4 and IPv6, Advanced Encryption Services, and all other DOCSIS 3.0 standards.

✓Low Pass Filter: Internal Low Pass Filter to eliminate MoCA signal overload.

✓DOCSIS 3.0 Certified: Channel bonding of up to four downstream channels and four upstream channels increasing data rates of well over 100 Mbps in each direction. It supports IPv4 and IPv6 to expand network addressing capabilities, and also supports AE traffic encryption for enhanced security and protection.

✓ Compatible with DOCSIS 1.0 / 1.1 / 2.0

✓ GigE Port w/ Auto Negotiate + Auto MDIX

✓ Four Upstream / Downstream Channels Each

✓ 10 / 100 / 1000 Base-T Ethernet Port

✓ Internal Low Pass Filter

✓ AES Traffic Encryption

✓ Supports IPv4 and IPv6

✓ User-Friendly Online Diagnostics

✓ Windows, Macintosh, and UNIX Compatible

Specifications:

✓ Modulation: -Downstream: 64 or 256 QA -Upstream: QPSK and 8, 16, 32, 64, 128 QAM

✓ Bandwidth -100 MHz (edge to edge) -DOCSIS: ≤ 24 MHz -EuroDOCSIS: ≤ 32 MHz

✓ Data Transfer Rate -Downstream: DOCSIS: 171.537 Mb/s (4 channels) / 42.884 (single channel) at 256 QAM at 5.36 Msym/s EuroDOCSIS: 222.464 Mb/s (4 channels) / 55.616 (single channel) at 256 QAM at 6.952 Msym/s -Upstream: DOCSIS: 131.072 Mb/s (4 channels) / 32.768 Mb/s (single channel): at 128 QAM at 6.4 MHz EuroDOCSIS: 131.072 Mb/s (4 channels) / 32.768 Mb/s (single channel): at 128 QAM at 6.4 MHz

✓ Symbol Rate -Downstream: DOCSIS 64 QAM 5.057 Msym/s; 256 QAM 5.361 Msym/s EuroDOCSIS 64 QAM 6.952 Msym/s; 256 QAM 6.952 Msym/s -Upstream: 160, 320, 640, 1280, 2560, 5120 ksym/s

✓ Level Range -Downstream: -15 to 15 dBmV -Upstream: Level range per channel (Multiple Transmit Channel mode disabled, or only Multiple Transmit Channel mode enabled with one channel in the TCS) DOCSIS/EuroDOCSIS: TDMA: Pmin to +57 dBmV (32 QAM, 64 QAM) Pmin to +58 dBmV (8 QAM, 16 QAM) Pmin to +61 dBmV (QPSK) S-CDMA: Pmin to +56 dBmV (all modulations), where: Pmin = +17 dBmV, 1280 kHz modulation rate Pmin = +20 dBmV, 2560 kHz modulation rate Pmin = +23 dBmV, 5120 kHz modulation rate Level range per channel (two channels in the TCS) TDMA: Pmin to +54 dBmV (32 QAM, 64 QAM) Pmin to +55 dBmV (8 QAM, 16 QAM) Pmin to +58 dBmV (QPSK) S-CDMA: Pmin to +53 dBmV (all modulations), where: Pmin = +17 dBmV, 1280 kHz modulation rate Pmin = +20 dBmV, 2560 kHz modulation rate Pmin = +23 dBmV, 5120 kHz modulation rate Level range per channel (three or four channels in the TCS) TDMA: Pmin to +51 dBmV (32 QAM, 64 QAM) Pmin to +52 dBmV (8 QAM, 16 QAM) Pmin to +55 dBmV (QPSK) S-CDMA: Pmin to +53 dBmV (all modulations), where: Pmin = +17 dBmV, 1280 kHz modulation rate Pmin = +20 dBmV, 2560 kHz modulation rate Pmin = +23 dBmV, 5120 kHz modulation rate

✓ RF Specifications: Bonded Channel RF Level Tolerance: 10dBmV Input Impedance : 75 Ohms (nominal) Output Impedance: 75 Ohms (nominal)

✓ Frequency Range: -Downstream: DOCSIS and EuroDOCSIS 108 to 1002 MHz (edge to edge), Optional 91 to 1002 MHz (edge to edge) -Upstream: DOCSIS 5-42 MHz (edge to edge), EuroDOCSIS and optional DOCSIS 5 to 65 MHz (edge to edge)

✓ Frequency Measurement: -Frequency Plan: EuroDOCSIS Annex A DOCSIS Annex B J-DOCSIS Annex B, modified for Japan Frequencies

✓ Security: DOCSIS 3.0 Security (BPI+, EAE, SSD)

✓ Network Management: SNMP v2 and v3

✓ IP Interface: Supports IP addressing using IPv4 and / or IPv6 (dual stack)

✓ Cable Connection: 75 Ohms F-connector

✓ Network Interface: 10 / 100 / 1000 Base-T Ethernet (RJ-45)

✓ Data Link Protocol: TCP / IP

✓ Power Supply: -9W nominal -105 - 125VAC, 60 Hz -100 - 240VAC, 50 - 60 Hz

✓ Compliance RoHS compliant, ENERGY STAR V2 , COC V3, Compliant per the "Code of Conduct on Energy Consumption of Broadband Equipment", CMM, MEPS

✓ Environmental Requirements -Operating Temperature: 32 to 104° F (0 to 40° C) Storage Temperature: -22 to 158° F (-30 to 70° C) Operating Humidity: 5 to 95% (non-condensing) -Dimensions: 5.2 x 5.2 x 1.7" (13.3 x 13.3 x 4.2 cm)
